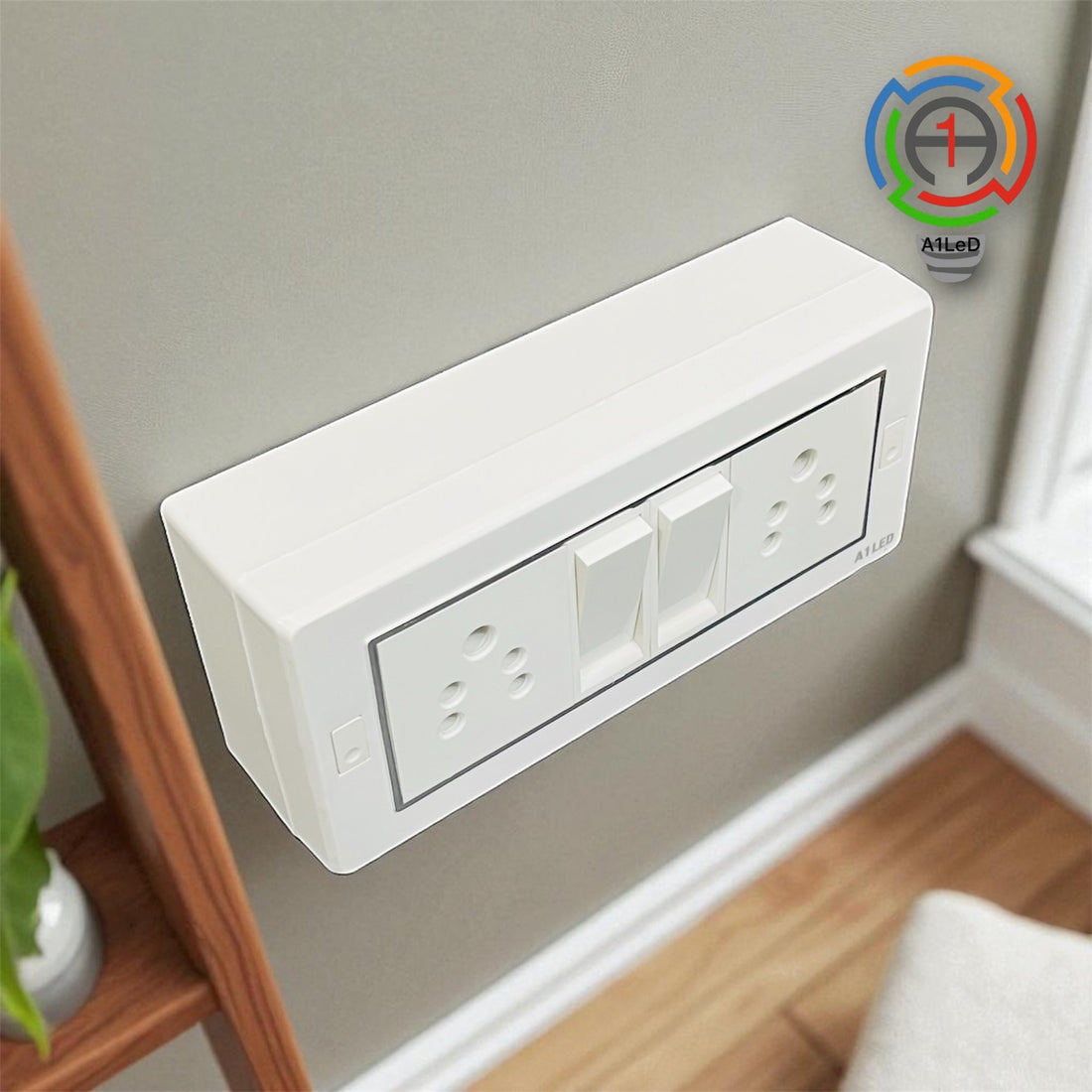

How to Install a Switch Board – Step by Step Guide
Share
Introduction
Installing a new switch board at home may seem complicated, but with the right guidance and safety steps, it can be easy and hassle-free. In this blog, we’ll explain how to install a modular switch board step by step, along with tips to keep your electrical setup safe.
1. Choose the Right Board
Before starting, decide which type of board you need:
• Number of switches required
• Do you need a fan regulator?
• How many sockets (6A or 16A)?
• Do you need an indicator?
👉 Note: A1LED switch boards are wall-mount only and not pre-wired.
2. Gather the Tools
Make sure you have these tools before installation:
• Screwdriver set
• Tester
• Wire cutter/stripper
• Insulation tape
• Screws & wall plugs
3. Switch Off the Power Supply
⚡ Always switch off the main MCB before starting installation.
This is the most important safety step to avoid the risk of electric shock.
4. Fix the Board on the Wall
• If needed, fix a GI box or plywood base first.
• Place the A1LED modular plate and tighten it with screws.
5. Make the Wiring Connections
• Connect each switch properly to its socket or appliance.
• Use 6A sockets for small appliances (chargers, TV, lamps).
• Use 16A sockets for heavy appliances (AC, geyser, fridge).
• Cover all joints securely with insulation tape.
6. Final Check
• Double-check all wiring connections.
• Switch ON the MCB.
• Test each switch, socket, and regulator.
Why Choose A1 LED Switch Boards?
• Heavy-duty & durable design
• Safe for heavy appliances
• Elegant modular finish
• Easy wall mounting
• Affordable with warranty
Customer FAQs
Q. Are A1 LED switch boards pre-wired?
👉 No, they are wall-mount only. Wiring is done during installation.
Q. Do I need a GI box or wooden ply?
👉 Only if the wall condition requires it.
Q. Which socket is best for heavy appliances?
👉 Always use a 16A socket for AC, geyser, or fridge.
